Property Revit Mappings

Revit mappings enable you to map properties on LastBIM to different parameters in Revit. They can be either mapped to built-in, type or instance parameters.

Written By Niklas Portmann

Last updated 6 months ago

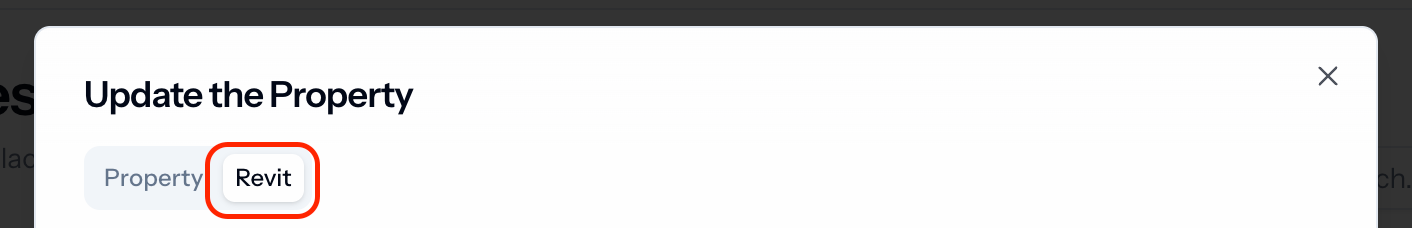

To define and edit Revit mappings for a property, open the edit dialog of the property and click on Revit on the toggle button at the top.

Shared Parameter vs. Built-In Parameter

In the Revit mapping you can switch the Mapping Kind between Shared Parameter and Built-In Parameter.

  • Shared Parameter:
    Use the setting Shared Parameter, if you want to define how the parameter should be handled in Revit, e.g. if you want the parameter to appear in a specific parameter group or want to use your existing shared parameters with their GUIDs.

  • Built-In Parameter:

    Use the setting Built-In Parameter, if you want to use the information of a built-in parameter without creating a new custom parameter within Revit. When exporting the model to IFC, it will be exported according to the IFC setting of the parameter on LastBIM.

Shared Parameter Mappings

Shared parameter mappings are the default mappings for properties on LastBIM. You can map a property to either an Instance , Type or Dual parameter by selecting the Parameter Kind:

  • Instance Parameter
    The parameter is assigned to an instance of an element in Revit. Default.

  • Type Parameter
    The parameter is assigned to a type of an element in Revit. All changes made to it will be applied to the whole category or family of elements in Revit.

  • Dual Parameter
    Dual parameters are custom to LastBIM. A single property is assigned to both an instance and a type parameter in Revit. Depending on which value is set, you’ll be able to edit either one. Only use this if you know what you’re doing.

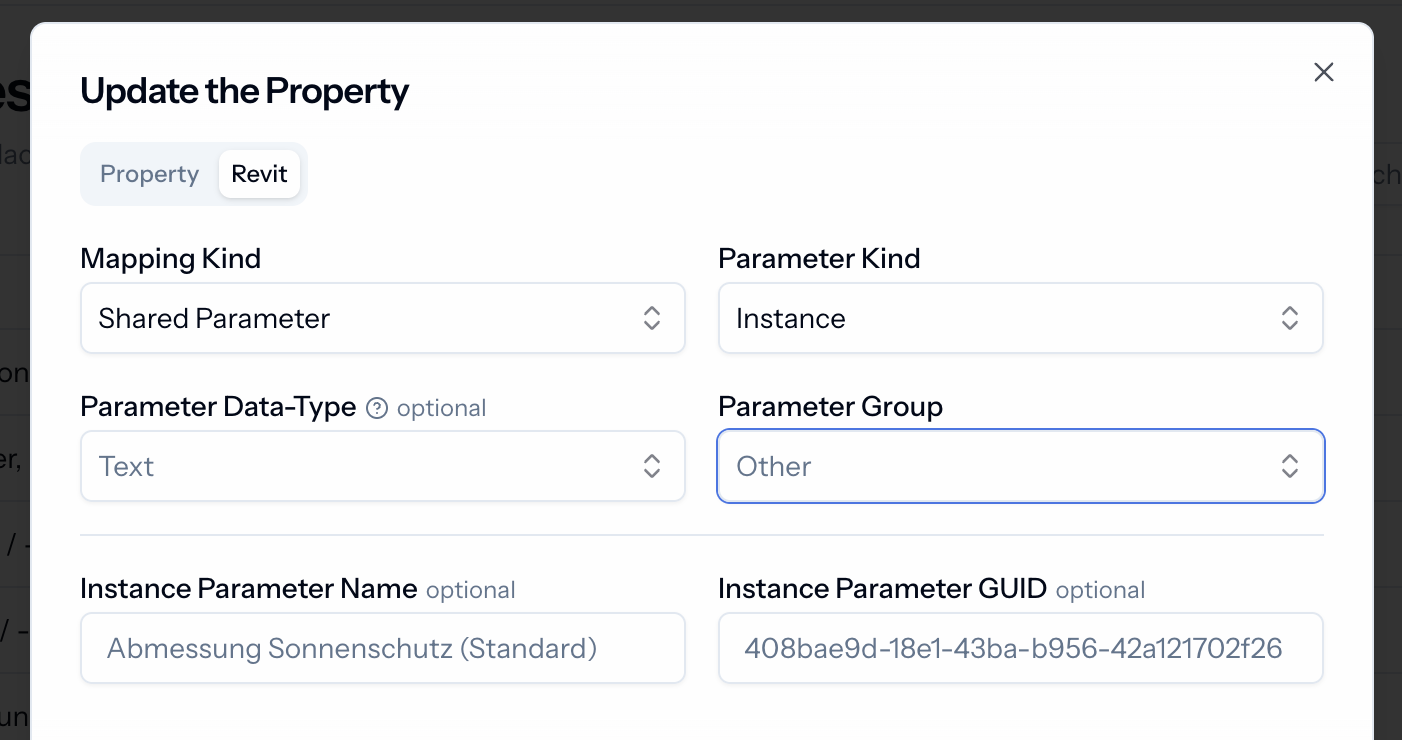

The fields for the shared parameters are the same for parameter kinds of both Instance and Type . All fields here are optional and filled based on the values is defined in the base property view. You can already see the default values in light grey in the fields.

Field

Description

Data-Type

Select one of the predefined data types. If you select a custom data-type, make sure that it’s compatible with the LastBIM datatype. E.g. don’t map a Number on the Yes/No data type of Revit.

Parameter Group

Decides under which group the parameter will appear in Revit.

Parameter Name

Make sure that the parameter name is not in conflict with any other parameter name, otherwise this might lead to incorrect values during an IFC-Export in Revit.

Parameter GUID

The GUID is used by our plugin to uniquely identify the parameter in Revit. If you already have shared parameters in your Revit project, make sure that the GUIDs match-up with the parameters specified here in LastBIM.

Built-In Parameter Mappings

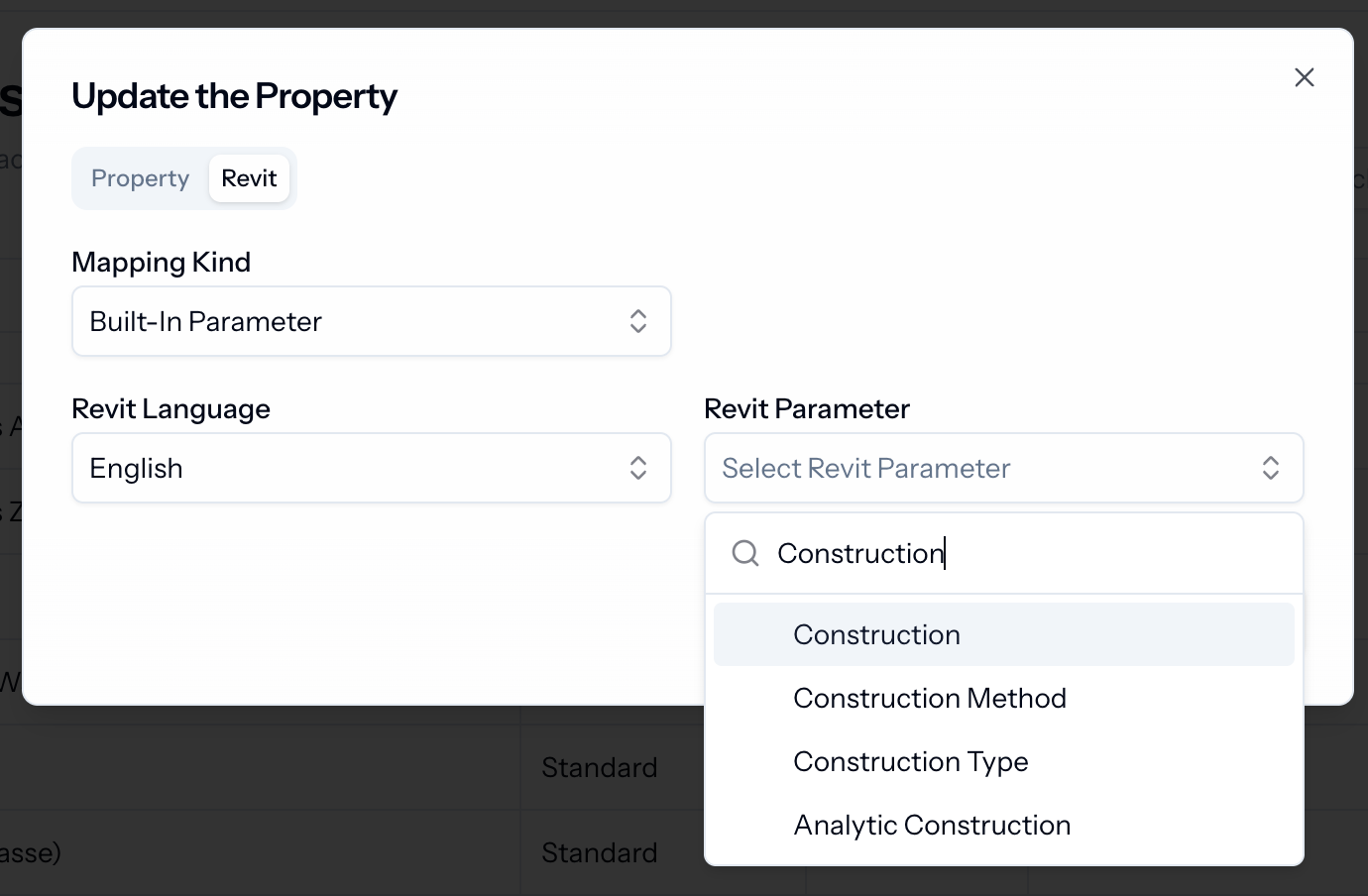

Built-in parameter mappings are used to map a LastBIM property to a Revit parameter which is managed by Revit itself and not user-defined. You just have to select a language (your user language is pre-selected) and the name of the parameter.

💡 Built-in parameters which are selected in a single language, will automatically be translated by our plugin into other support Revit languages.
